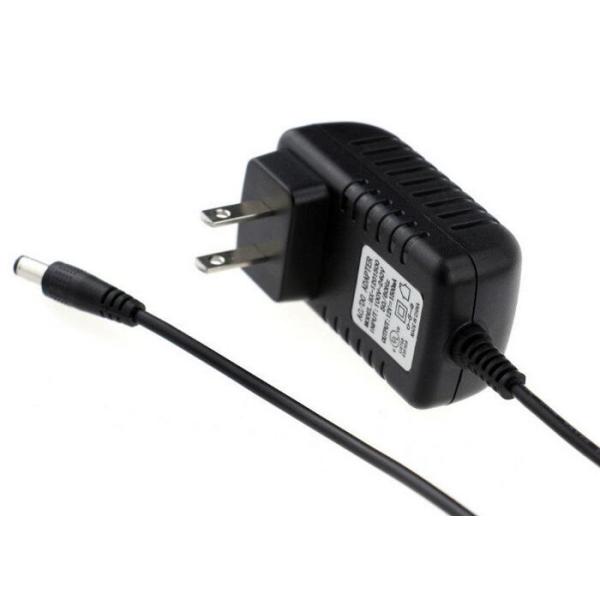

6W 12W Wall Mount LED Power Adapter Charger IP44 With Plug In Connection , AC 100-240V

Product Categories

HK Anenerge Co., Limited

Contact Now

Name: 6W 12W Wall Mount LED Power Adapter Charger IP44 With Plug In Connection AC 100240V
Brand: OEM/Anenerge
Price: 1 USD

Brand Name : OEM/Anenerge

Model Number : AE-5W6W12W

Certification : CE Rohs FCC UL TUV GS CB SAA KC

Place of Origin : Shenzhen

MOQ : 1pcs

Price : 1-3usd/pcs

Payment Terms : Western Union,Paypal,T/T

Supply Ability : 1000000pcs/month

Delivery Time : 3-5days

Packaging Details : Neutral white box packaging

Available : LED lights CCTV camera

Plug : UK US AU EU

Warranty : 3 years

Waterproof : IP44

Material : ABS plastic

Certificates : UL CUL TUV GS CE SAA PSE

Contact Now

Waterproof IP44 LED power adapter,EU UK AU US 12v 9v 5v 5W 6W 12W waterproof power supply

Output Type:DC

Connection:Plug In

Color:Black

Material:ABS+PC

Ripple Noise:≤200mv

Warranty:2years

Output power:12w

Output voltage:12V±5%

Input voltage:100-240V ac

Usage:Digital Products

Input Frequency:50Hz/60Hz

Working Tempreture: 0℃-40℃

Technical Specification	Input Voltage	AC 100-240V
	Input Frequency	50Hz/60Hz
	Input Current	≤0.4A(AC Input Voltage 100V)
	Dash Current	≤35A(AC Input Voltage 240V)
	Power Factor	≥0.5(AC Input Voltage 240V, Internal Resistance<0.1Ω)
	Efficiency	≥82.96% at rated voltage
	Output Voltage	12V±5%
	Output Rated Current	1A
	Rated Power	12W
	Ripple Noise	≤200mV
	Start Delay Time	≤3S(under the Iput-voltage of AC110V)
	Working Temperature	0℃ to 40℃
	Storage Temperature	-20℃ to 70℃
	Humidity	5%-95%(under the condition of non-concentrated)
	Atmospheric Pressure	70 — 106Mpa
	Hi-pot Test	AC 3000V(Min), 3S, leakage Current≤5mA
	Insulation Resistance	≥10MΩ (Test condition: standard atmospheric pressure, humidity 90%, DC500V)
Certificate	CE, FCC, ROHS, SAA, CB, GS, KC
Warranty	2 years
Feature	IC Program Design with low power consumption
	100% aging test
	MTBF50,000 hours under the temperature of 25℃ with maximum load(according to the standard of MIL-HDBK-217)
